Brazilian MSX hardware manufacturer Tecnobytes takes a new round of pre-orders for their GFX9K clone cartridge Powergraph Light.

Known for their excellent MSX hardware like their recent Audiowave, Tecnobytes released their Powergraph Light video extension earlier. The product was sold out quickly, which let to a second batch of this product. The price will be 153 USD including world-wide-shipping. There can be shipped three units in one batch.

The Powergraph light has built in connectors for S-Video and composite signal, shipped with v9990 capabilities for real MSX hardware.

To get your hands on a copy, visit the dedicated web page on Tecnobytes their web site.

Relevant link: Product page

Reacties (37)

Van Grauw

Ascended (10016)

afbeelding van Grauw

09-04-2021, 12:57

Luckily my AudioWave hadn’t shipped yet so I could combine shipping, saves quite a bit. Very affordable piece of kit, looking forward to it to replace my original Gfx9000.

Van Manuel

Ascended (18088)

afbeelding van Manuel

09-04-2021, 13:10

What's wrong with your original then?

Van msd

Paragon (1461)

afbeelding van msd

09-04-2021, 16:27

Manuel wrote:

What's wrong with your original then?

The original v9990 (version 1.1?) has very bad grounding

Van Randam

Paragon (1367)

afbeelding van Randam

09-04-2021, 20:30

As interesting as a v9990 light is, is there any chance a more elaborate powergraph will be released? I already have a gfx9000 but something with more features like for instance superimpose would be interesting for me...

Van aoineko

Master (163)

afbeelding van aoineko

09-04-2021, 20:52

The "Product page" link to outdated page I think. The new one is: http://www.tecnobytes.com.br/2021/04/powergraph-light-rev-2-...

Van aoineko

Master (163)

afbeelding van aoineko

09-04-2021, 20:56

The cartridge include a "real" V9990 dedicated chip or is it a emulated one (FPGA)?

Van Manuel

Ascended (18088)

afbeelding van Manuel

09-04-2021, 21:37

I don't think that there is an FPGA implementation of the V9990....

Van AnsiStar

Expert (86)

afbeelding van AnsiStar

09-04-2021, 23:32

Is the new one compatible to the first batch?
I mean, games like Intruder do they work with the new version?

Van rogerio.belarmino

Expert (71)

afbeelding van rogerio.belarmino

10-04-2021, 01:26

fully compatible Smile

Van gdx

Enlighted (4637)

afbeelding van gdx

10-04-2021, 12:23

aoineko wrote:

The cartridge include a "real" V9990 dedicated chip or is it a emulated one (FPGA)?

FPGA or not, as long as it works well. Anyway there is little chance that the V9990 will ever be emulated by an FPGA.

Van Meits

Scribe (6437)

afbeelding van Meits

10-04-2021, 14:15

msd wrote:
Manuel wrote:

What's wrong with your original then?

The original v9990 (version 1.1?) has very bad grounding

Shouldn't that be something fixable?

Van msd

Paragon (1461)

afbeelding van msd

10-04-2021, 14:21

You can add a lot of extra wires . But actually it is due to the pcb design

Van Grauw

Ascended (10016)

afbeelding van Grauw

10-04-2021, 15:35

Yes, I recall back in the day my Gfx9000 had issues with jailbars, I went to Koen who fixed it by adding a net of wires. However because of that I feel it’s good to have a second unit.

As for superimpose, yes that’s something on my wishlist too. I originally planned to wait with buying a new one until that feature was implemented by someone. But even though there were some things said here and there, it’s not really looking to be happening anytime soon atm. Since the PowerGraph Light is nicely priced and I was able to combine shipping, I have taken the opportunity to order one Smile.

Van msd

Paragon (1461)

afbeelding van msd

10-04-2021, 16:00

Grauw wrote:

Yes, I recall back in the day my Gfx9000 had issues with jailbars, I went to Koen who fixed it by adding a net of wires. However because of that I feel it’s good to have a second .

Can you make a picture of that?

Van Briqunullus

Champion (393)

afbeelding van Briqunullus

10-04-2021, 16:04

Anybody wants to share shipping costs with me?

Van Meits

Scribe (6437)

afbeelding van Meits

10-04-2021, 16:20

msd wrote:
Grauw wrote:

Yes, I recall back in the day my Gfx9000 had issues with jailbars, I went to Koen who fixed it by adding a net of wires. However because of that I feel it’s good to have a second .

Can you make a picture of that?

Would be nice if that fix was documented.
@msd: Is this only the 1.1 version or the very first way too big 1.0 as well?
I have them both, but never bothered checking any of 'em... But I'd like to have them in top condition though.

Van hamlet

Scribe (3628)

afbeelding van hamlet

10-04-2021, 17:30

I remeber bought my light two years ago. I was happy when it arrived but I had to pay fees at the custom office, which made it quit expensive. Unfornatually TMTLogic's GFXnine is not available anymore. I heard they runned out of V9990 chips...
I do own MiChis previous Video9000 but hardly use it since the smaller cards are way better to handle.

Van msd

Paragon (1461)

afbeelding van msd

10-04-2021, 17:39

@meits: could be 1.0 doesn’t have the jail-bar issue , but it is easy to check. In a white background you can see it very clearly .

Van ssfony

Expert (78)

afbeelding van ssfony

10-04-2021, 20:46

I have a version 1 of the sunrise gfx9000, from the first batch, never had any issues with it. Still works fine.

Van Meits

Scribe (6437)

afbeelding van Meits

10-04-2021, 21:57

ssfony wrote:

I have a version 1 of the sunrise gfx9000, from the first batch, never had any issues with it. Still works fine.

Looking at a 1.0 now. No jail bars indeed.

Van AnsiStar

Expert (86)

afbeelding van AnsiStar

11-04-2021, 18:37

Is that Powergraph only for MSX II machines? Do i have an II+ then?

Van Grauw

Ascended (10016)

afbeelding van Grauw

11-04-2021, 18:51

msd wrote:
Grauw wrote:

Yes, I recall back in the day my Gfx9000 had issues with jailbars, I went to Koen who fixed it by adding a net of wires. However because of that I feel it’s good to have a second .

Can you make a picture of that?

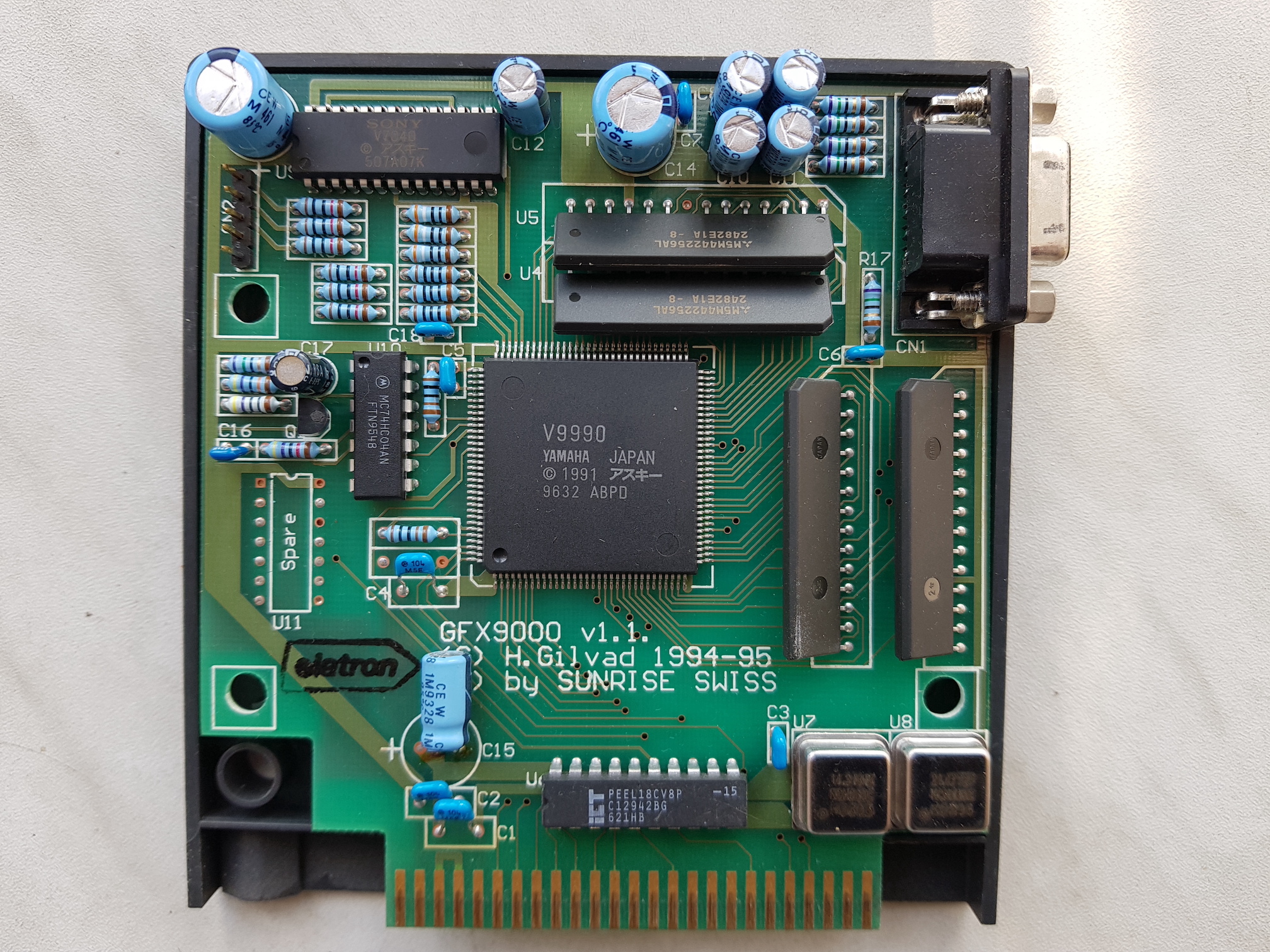

Sure: front, back. Doesn’t look as bad as I remembered tbh.

Van hamlet

Scribe (3628)

afbeelding van hamlet

11-04-2021, 20:50

Also front

and back of my 1.1

Van hamlet

Scribe (3628)

afbeelding van hamlet

11-04-2021, 20:52

AnsiStar wrote:

Is that Powergraph only for MSX II machines? Do i have an II+ then?

No, it also works with MSX1 computers. MSX2+ don't have a V9990 built in, no machine does. Wink

Van Meits

Scribe (6437)

afbeelding van Meits

12-04-2021, 17:08

Grauw wrote:
msd wrote:
Grauw wrote:

Yes, I recall back in the day my Gfx9000 had issues with jailbars, I went to Koen who fixed it by adding a net of wires. However because of that I feel it’s good to have a second .

Can you make a picture of that?

Sure: front, back. Doesn’t look as bad as I remembered tbh.

That does not look scary at all. I'll have a go at that.
Thanks

Edit.
I opened mine, eager to do solder to it... To my horror it was already done

Van AnsiStar

Expert (86)

afbeelding van AnsiStar

12-04-2021, 19:14

Thanks Hamlet! After 5 minutes of thinking i got it myself! Wink

Van mohai

Paladin (930)

afbeelding van mohai

13-04-2021, 09:23

hamlet wrote:

Also front
and back of my 1.1

OMG !
What are all those connectors and switches for ?
Question

Van hamlet

Scribe (3628)

afbeelding van hamlet

14-04-2021, 20:59

mohai wrote:

What are all those connectors and switches for ?
Question

All about superimpose. Smile

Van ducasp

Champion (455)

afbeelding van ducasp

14-04-2021, 22:47

AnsiStar wrote:

Is that Powergraph only for MSX II machines? Do i have an II+ then?

Just be sure you understand what it is for, as it is in no way an upgrade to MSX2 or 2+, it is a different VDP that only applications made specifically for it work, i.e.: you won't be using its video output on dos, basic, games that are not specific for 9990, etc (making it simple, I know there is a hacked version of basic to work with 9990 but that is far from pluging the cartridge and using its video output as a full replacement)

Van thezorry

Resident (63)

afbeelding van thezorry

15-04-2021, 09:41

I've ordered one. Is there any schema to create a RGB scart cable for it?

Van dumfrog

Resident (43)

afbeelding van dumfrog

15-04-2021, 13:37

ducasp wrote:

Just be sure you understand what it is for, as it is in no way an upgrade to MSX2 or 2+, it is a different VDP that only applications made specifically for it work, i.e.: you won't be using its video output on dos, basic, games that are not specific for 9990, etc (making it simple, I know there is a hacked version of basic to work with 9990 but that is far from pluging the cartridge and using its video output as a full replacement)

I knew I couldn't write a simple "10 SCREEN 25" to get the power of the V9990, but could you explain a little bit more ? Do I have to learn ASM to get it work ?

Van SjaaQ

Master (215)

afbeelding van SjaaQ

15-04-2021, 16:04

I have ordered one.

"Shipments must start 2 months after the closing of the batch which is 4 May" as reported by Technobytes.

Van Briqunullus

Champion (393)

afbeelding van Briqunullus

15-04-2021, 19:29

dumfrog wrote:

I knew I couldn't write a simple "10 SCREEN 25" to get the power of the V9990, but could you explain a little bit more ? Do I have to learn ASM to get it work ?

Haven't tried it myself, but you could take a look at G-BASIC.

Van mohai

Paladin (930)

afbeelding van mohai

16-04-2021, 08:53

hamlet wrote:
mohai wrote:

What are all those connectors and switches for ?
Question

All about superimpose. Smile

Ok. I understand.
I have never seen the inside of a Video9000. Looks quite complex for only superimposing.
I always thought that superimposing with V9990 was more straightforward.

Van Daemos

Paragon (1951)

afbeelding van Daemos

16-04-2021, 12:00

Ordered one. Already own the big version. The light will be a very welcome addition.

Van msd

Paragon (1461)

afbeelding van msd

23-04-2021, 21:11

Grauw wrote:
msd wrote:
Grauw wrote:

Yes, I recall back in the day my Gfx9000 had issues with jailbars, I went to Koen who fixed it by adding a net of wires. However because of that I feel it’s good to have a second .

Can you make a picture of that?

Sure: front, back. Doesn’t look as bad as I remembered tbh.

Did he also add that tantalum capacitor? And if so can you read the type?

Van Gregory

Master (177)

afbeelding van Gregory

03-07-2021, 20:44

gdx wrote:
aoineko wrote:

The cartridge include a "real" V9990 dedicated chip or is it a emulated one (FPGA)?

FPGA or not, as long as it works well. Anyway there is little chance that the V9990 will ever be emulated by an FPGA.

How come?
